BAADER DIAMOND STEELTRACK (BDS) PER TELESCOPI SCHMIDT CASSEGRAIN
BAADER DIAMOND STEELTRACK (BDS) PER TELESCOPI SCHMIDT CASSEGRAIN

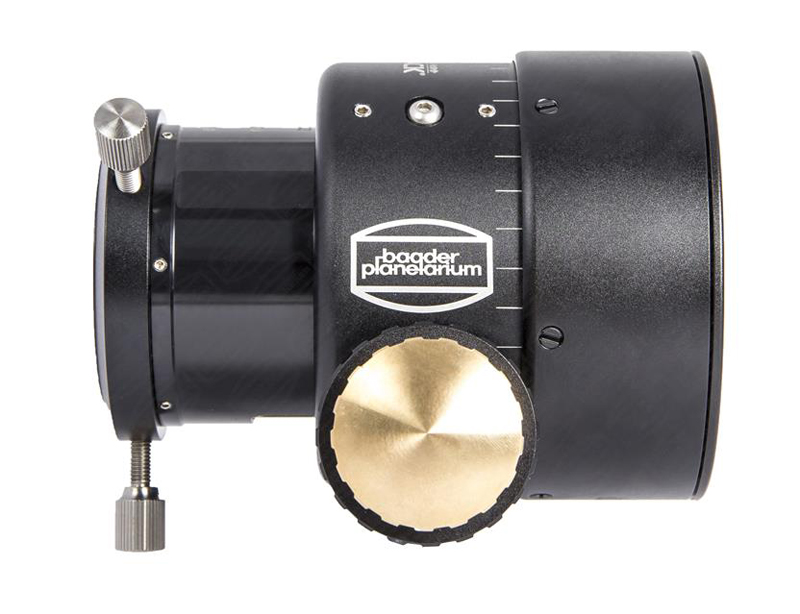

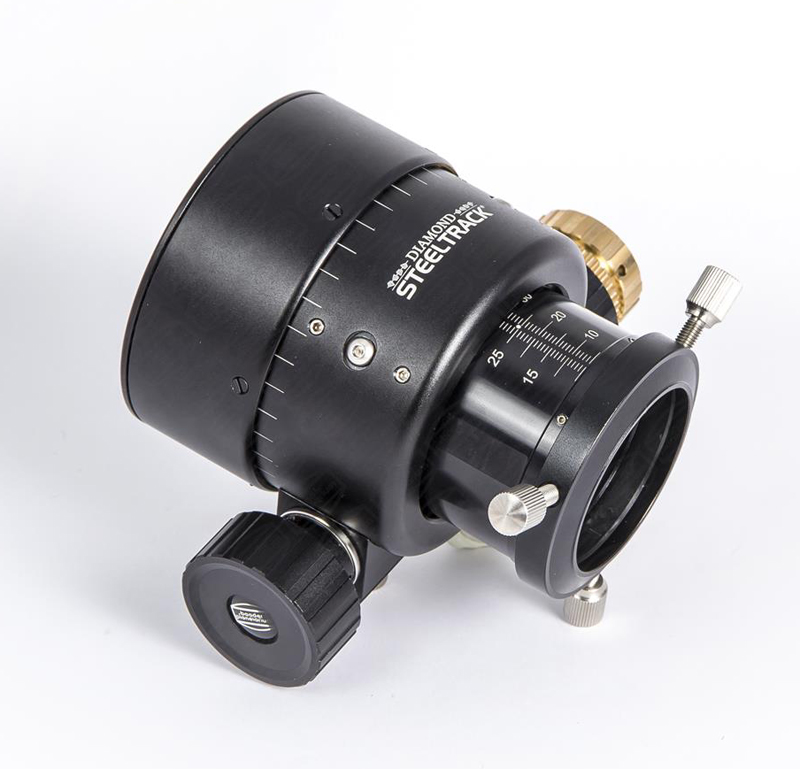

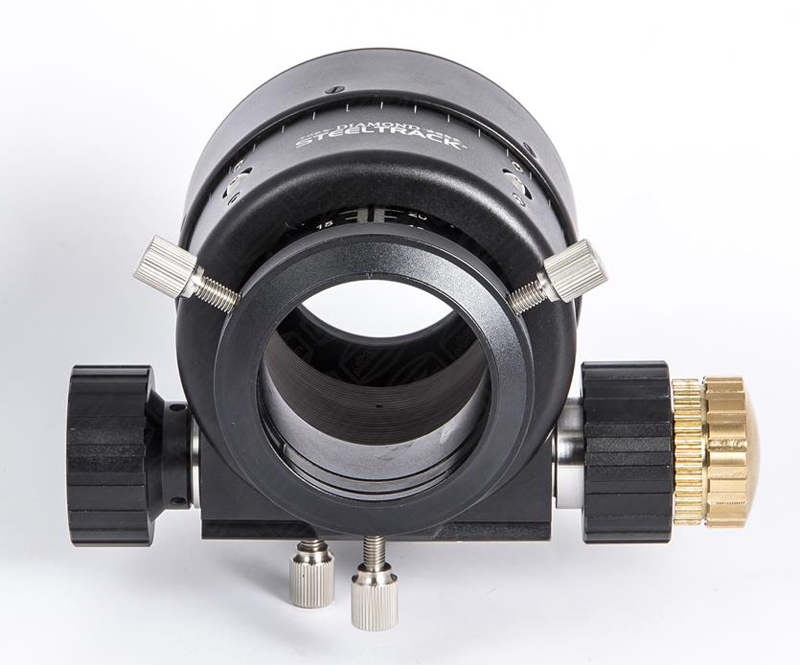

Fuocheggiatore Baader Steeltrack diamond (BDS) per telescopi SC/HD. 30mm di escursione. Sono inclusi raccordo 3.3 e riduzione 2 Fuocheggiatore Baader Steeltrack diamond (BDS) per telescopi SC/HD. 30mm di escursione. Sono inclusi raccordo 3.3 e riduzione 2 Fuocheggiatore Baader Steeltrack diamond (BDS) per telescopi SC/HD. 30mm di escursione. Sono inclusi raccordo 3.3 e riduzione 2 Fuocheggiatore Baader Steeltrack diamond (BDS) per telescopi SC/HD. 30mm di escursione. Sono inclusi raccordo 3.3 e riduzione 2
Baader Planetarium - BP2957220
Fuocheggiatore Baader Steeltrack diamond (BDS) per telescopi SC/HD. 30mm di escursione. Sono inclusi raccordo 3.3 e riduzione 2
Diamond Steeltrack 2" Focuser (BDS)-SC for SC/HD-teleskopes, 30mm focus-travel - incl. adapter for 3,3"- and 2" UNF-thread
EUR       325,00 scarica la scheda in PDF disponibile
EUR 266,39 + local tax VAT 22%. Only for EU customer

Bookmark and Share

 Acquista a rate per un ordine di almeno EUR 600 ! (only for Italy)
TAX FREE for not EU customer
Pagamenti con le principali carte di credito su circuito PayPal
VISA AMEX MASTERCARD POSTEPAY AURA PAYPAL
Bonifico Contrassegno Rateizzazioni not EU customer

Drive System:

• True diamonds form a micro-geared high precision drive system never accomplished before
• In comparison to conventional crayford or rack & pinion drives, this micro-geared movement has zero backlash,
zero cogging, and zero flexure
• Diamond Steeltrack 2" focusers lift a payload of 6kg (13 lbs) straight up, without slipping, without excessive
bearing preload (bearing preload can be increased further if necessary)
• Bearing system utilizes unbreakable Instrument Grade Roller-Bearings instead of simpler Ball Bearings -
handles higher loads with greater rigidity and accuracy. No Teflon-pads anywhere
• 1:10 Stainless Steel fine-focus mechanism, ready for attachment of the optional Steeldrive temperaturecompensating
motor drive system
• Detachable drive block assembly is reversible for right hand or left hand fine-focus operation and for attaching
the Steeldrive motorblock onto Diamond-NT-Steeltracks for newtonian telescopes
• Shortest possible mechanical design achieves optimum balance between focuser height (backfocus) and
rigidity requirements
• Zero shift locking knob to precisely stop any movement without affecting optical axis adjustment

Focusing Drawtube:

• Each bearing individually adjustable for precise alignment of mechanical vs. optical axis
• Ultra-hard subzero coated bearing races – precision milled and much harder than anodizing or stainless steel
• Oversized 55mm inner clear diameter, to prevent vignetting, with anti-reflection knife-edge baffles

Clamping System:

• S58 Dovetail ring-clamp built into focusing tube for accepting optional T-2 / M48 / M68 and other S58 directthread
adapters to enable direct thread connection of accessories and cameras without 2" clamp
• 2" eyepiece clamp with hardened bronze clamp ring (length of clamp: 12.5mm / ½") included as standard
• Optionally available 2" Baader Clicklock-clamp w. integrated S58 dovetail (added length: 16mm / 5/8")
• Two auxiliary threads (M60x1 and M55x0,75) cut into the RT & NT focusing-tube for attachment of dedicated
field flatteners or focal reducers/correctors

Telescope Adapters:

• Refractor-BDS (RT): Adapters available or under development to fit a wide variety of refractor telescopes
• Newtonian-BDS (NT): Includes Baader Versabase, for perfect fit onto most tube diameters.
 Optional flat mounting base available soon

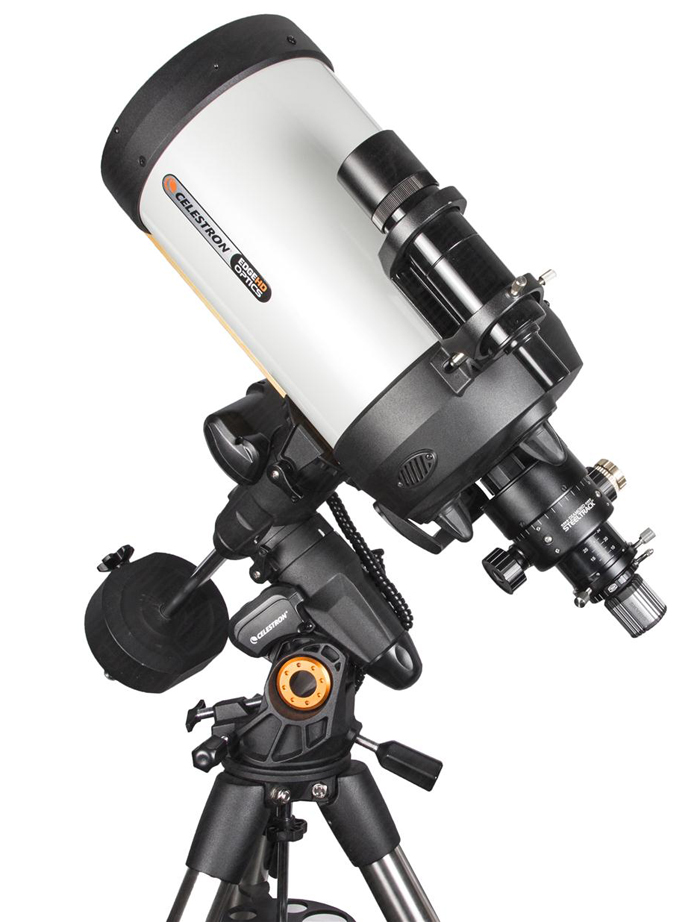

• SC/HD-BDS (SC/HD): Includes adapter to fit all C14/C11/C9Ό/C8/C6/C5 OTA’s


Caratteristiche Tecniche / Specifications

  • 30 millimetri lunghezza di estensione (percorso di messa a fuoco)
  • Altezza minima complessiva fino al terminale 2"): 93 mm
  • Altezza complessiva minima (con adattatori opzionali S58): 80 mm
  • Peso totale: 1.040 g

incl. adattatore per il collegamento a tutte le C14 / C11 / C9Ό, C8 / C6 / C5 OTA
