QHY - CCD CAMERA - PLANETARIE & PROFONDO CIELO
QHY - CCD CAMERA - PLANETARIE & PROFONDO CIELO
QHY462C Camera colore usb3 QHY462C Camera colore usb3 QHY462C Camera colore usb3 QHY462C Camera colore usb3

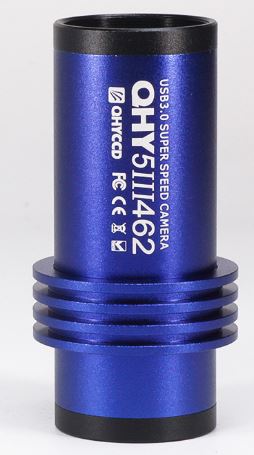

UnitronItalia - QHY5III462C
QHY462C Camera colore usb3
EUR       349,00 disponibile
EUR 286,07 + local tax VAT 22%. Only for EU customer
ULTERIORE SCONTO 3% PAGAMENTO BONIFICO EUR 338,53

Bookmark and Share

 Acquista a rate per un ordine di almeno EUR 999999999 ! (only for Italy)
TAX FREE for not EU customer
Pagamenti con le principali carte di credito su circuito PayPal
VISA AMEX MASTERCARD POSTEPAY AURA PAYPAL
Bonifico Contrassegno Rateizzazioni not EU customer
Un`altra eccezionale camera prodotta da QHY con il nuovissimo sensore IMX462 retroilluminato e molto sensibile all`infrarosso; praticamente un ibrido che prende il meglio delle 224C e 290C!

Altissima QE a 800-1000nm, in RGB lavora come una normale camera a colori mentre in IR è molto simile come prestazioni ad un sensore monocromatico

Super High Convert Gain
Tecnologia proprietaria di QHY che rende la 462 ancora più sensibile del modello 290!

Altissimo frame rate fino a 135 FPS
Alla risoluzione di 1920x1080 raggiunge fino a 135 frame al secondo, perfetti per la ripresa planetaria e lunare

Filtri  UV/IR cut e 850nm IRpass inclusi
La camera arriva già con due filtri da 1,25" per sfruttare appieno tutte le sue potenzialità! Un filtro UV/IR cut per utilizzarla a colori ed un filtro IRpass da 850nm per sfruttare la sua alta sensibilità nell`infrarosso!

La QHY462C può essere usata con soddisfazione in moltissimi campi

Camera planetaria ad alti FPS con filtro ir-cut
Camera planetaria con utilizzo di filtri a banda stretta (IR-pass, Venus filter o CH4)
Camera di guida grazie alta sensibilità all`infrarosso
Camera per la tecnica del "Lucky imaging" grazie all`alta sensibilità e al basso rumore di lettura (solo 0,7e)

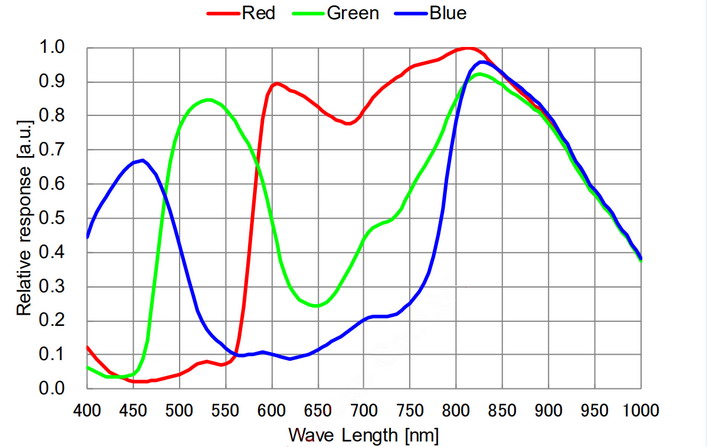

Superb NIR response
━━━━
High QE 800-1000nm
Monochrome at NIR
The QHY5III462C uses Sony`s latest generation IMX462 back-illuminated sensor with extended red and near infrared response. It has nearly double the red and NIR sensitivity as previous generation BSI sensors and even greater sensitivity compared to front illuminated sensors. Because the RGB filters become transparent at NIR wavelengths, the camera captures RGB color images in visible light and monochrome images in NIR.

Super High Conversion Gain
━━━━
Boosts Low Light Sensitivity
0.5e- Read Noise
Sony`s new sHCG (Super High Conversion Gain) technology produces a higher voltage from fewer photons resulting in greater sensitivity even at very low levels of light. With sHCG technology, even in visible light, the QHY5III462C has higher sensitivity than the back-illuminated IMX290 based cameras.

High Frame Rate
━━━━
135FPS
To produce the highest detail with the greatest dynamic range, many planetary imagers prefer to capture hundreds or thousands of images in as short a time as possible and then process the results into one final combined image. This requires high sensitivity for short exposures and low read noise for combining multiple images. The QHY5III462C will output 135 frames per second at full resolution. With its exceptionally high QE and extraordinarily low (0.5e-) read noise, it is the perfect camera for planetary imaging.

Filters for Visible and IR Imaging
━━━━
IR850 for NIR
UV-IR for Color
The QHY5III462C comes with two free 1.25-inch filters. The IR850 filter is a long wavelength pass filter that allows wavelengths > 850nm to pass through. The UV/IR filter passes visible light and blocks the NIR. With these two filters you can capture both RGB color images and NIR monochrome images with the same camera. At NIR wavelengths, the RGB filters become transparent and the camera behaves like a monochrome IR camera


Caratteristiche Tecniche / Specifications

Model QHY5III462C(Color)
CMOS Sensor SONY IMX462 CMOS
Pixel Size 2.9um*2.9um
Effective Pixel Area 1920*1080
Effective Pixels 2 Megapixel
AD Sample Depth 12bit (output as 16bit and 8bit)
Sensor Size Typical 1/2.8 inch
Max Full Frame Rate and ROI Frame Rate 1920*1080 Full Resolution 135FPS@8BIT And more resolutions (Support any region ROI)
Exposure Time Range 50us-3600sec
Non-volatile memory / On camera storage Build-in total 512Kbytes Flash Memory. 100Kbytes user-accessible space for stellar ROI frames for analysis of exoplanet investigation, occultations, atmospheric seeing messurement, focus , optic analysis etc. Support 100*100 image x 10rames   50*50 image x40frames. 25*25 image x160frames 10*10 image * 1000 frames (total frame numbers is based on 8bit image)
Shutter Type Electric Rolling Shutter
Computer Interface USB3.0
Guide Port Standard 6-pin RJ11 Guide Port
Telescope Interface 1.25-inch
Optic Window Type QHY5III462C
Back Focal Length see the setup combination table in the bottom of this page
Weigth 88g
